Modul Ampli TPA3116D2 1x100W Mono 100W Amplifier Class D TPA 3116 M542

TPA3116D2 100W Mono Digital Power Amplifier DC12-26V XH-M542

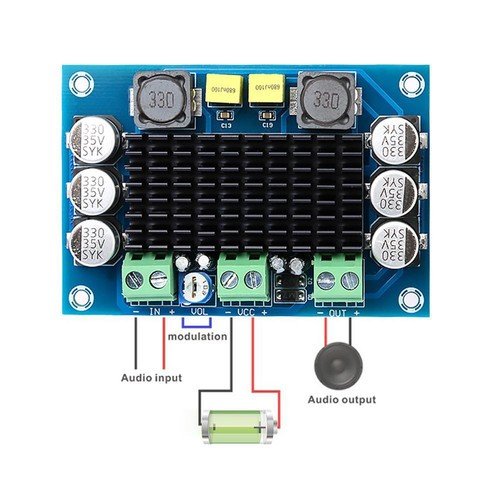

Name : TPA3116D2 Digital Audio Amplifier Board
Chip Type : TPA3116D2
Input voltage : DC12-26V
Output power : 100W
SNR : 100dB
Channel : Mono

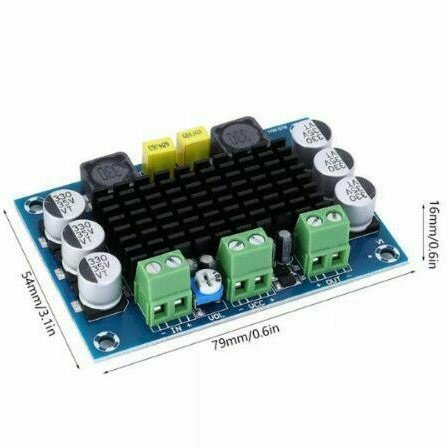

Size: 79*54*16mm
1 x TPA3116D2 Digital Audio Amplifier Board
Weight : 136g
100%Brand New and High Quality

Untuk Subwoofer maka bisa dikombinasikan dengan module NE5532 Subwoofer Preamp Low Pass Freq Board.

Precautions:
1. The power supply is recommended to be 24V, do not exceed this voltage!
2. Do not short the audio output to each other or to the ground
3. Please check carefully before power-on to ensure that the wiring is correct.
