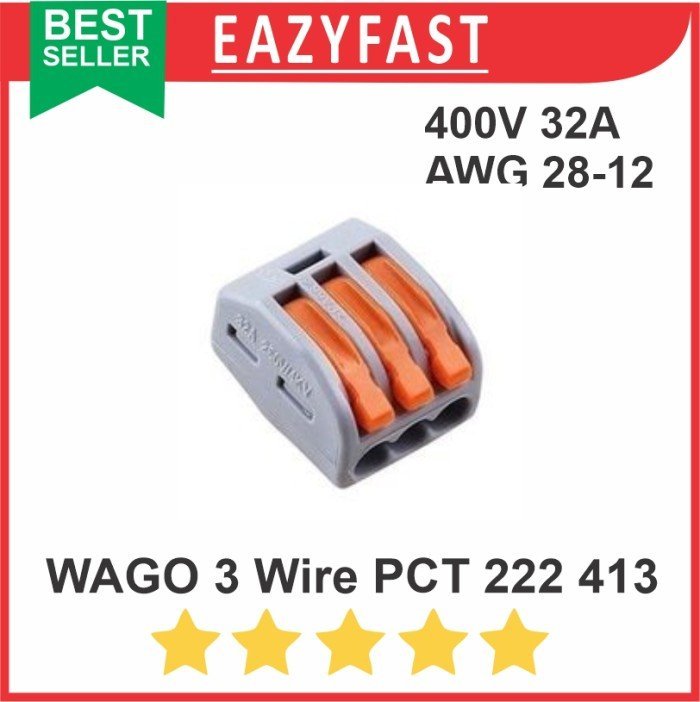

Terminal Block Clamp Wago Konektor 3p 3 Way Wire Kabel PCT 222 413

22-413 WAGO Replace 3 Pole Quick Push In Wire Connectors

1. DESCRIPTION:

The 222-413 Splicing connector is Safe and reliable, easy to operate. With flame retardant insulation materials and stainless steel spring structure, makes the wire connection does not fall off. The 222 series Wago connectors offer a tool free and compact solution for connecting assembled terminal blocks. The connection of up to three stripped fine stranded conductors up to 2.5 mm. The integrated orange lever acts as a sturdy clamp when in the rest position, preventing a connected conductor accidentally become loose or damaged, making them a really handy for free wiring.

Built-in test point.
Quick and easy installation
Protection against electrical shock, touch safe.
Low installed cost and safe operation.

Technical Parameters

Model No.: VSE-413-A (222-413)
Color: Grey/Orange, other color can be customized

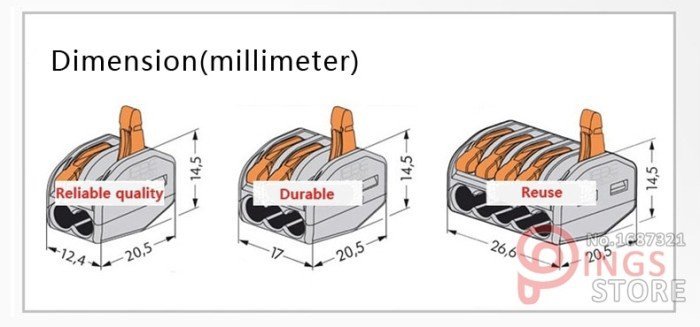

Length/Height/Wide (mm): 20.5/17/14.5
Connection method: Cage Clamp
Material: Flame resistant Nylon PA66, also available in PC material
Rated Voltage/Current: 400V/32A
Cross section, solid Cable/Conductor Size: 0.08-2.5 mm /28-12 AWG
Cross section, soft Cable/Conductor Size: 0.08-4 mm /28-12 AWG
Strip length: 9 -10 mm / 0.35 -0.39 in
Mounting Carrier: 222-500, 222-505
Standard: IEC 60947-7-1
Certification: CE/RoHS/CQC/ISO 9001
